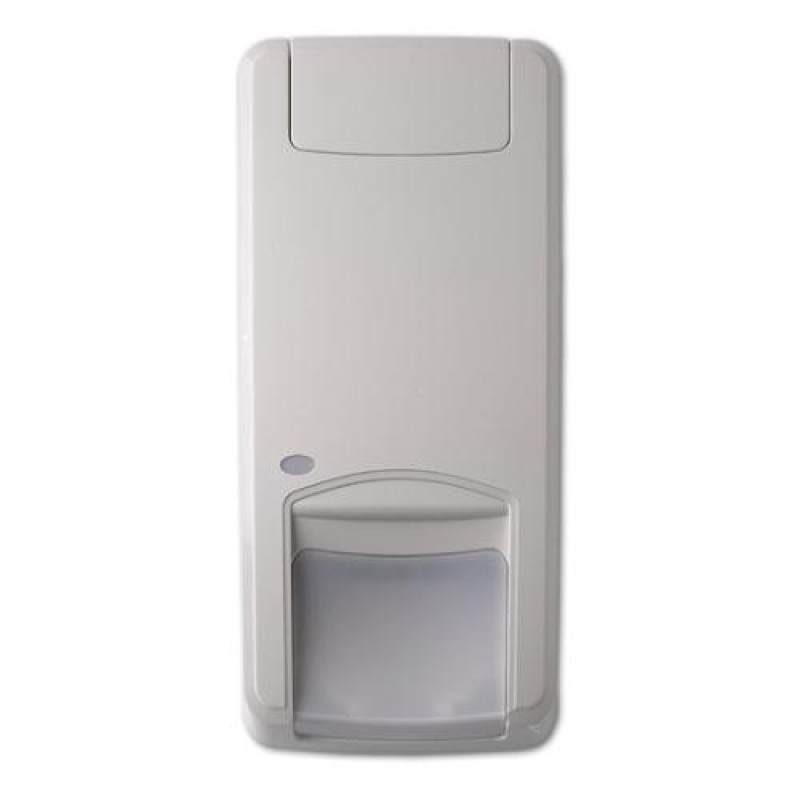

Aritech, DD1012-D, 12m Dual Technology Motion Detector W/ 9 Curtains (Grade 2)
- Brand:UTC (Aritech)
- Product Code:DD1012-D
- Availability:Please Call or Email Us to Check Availability
Aritech, DD1012-D, 12m Dual Technology Motion Detector W/ 9 Curtains (Grade 2)
Motion detectors of the DD1000 series feature a unique range-controlled radar technology patented by UTC Fire & Security, which allows the installer to set a clearly defined detection limit for radar technology. The radar is used to determine the distance between the sensor and moving objects. Thus, false alarms can be effectively avoided by movements outside the detection range. Each movement detector has 4 adjustable radar ranges, which can be adapted to the specific local conditions in which the sensor is to be mounted by means of DIP switches. The radar technology uses the 5.8GHz frequency range and does not affect any WIFI networks.
Key Features:
- Patented adjustable range-controlled radar technology precisely defines the radar detection limit
- PIR technology with patented mirror curtain optics
- Intelligent alarm detection based on signal classification of PIR and radar alarms
- Automatic self-diagnosis of all technologies
- Green mode: Option for switching off the radar technology for blurred EMA
- Features various safety notices including EN Grade II and UL / ULc
- VdS recognition: G113516
Technical Specification:
- Detection range : 4, 6, 9, 12m adjustable by means of DIP switch
- Viewing angle : 78 °
- PIR optics : 9 High-density mirror curtains
- Microwave frequency : 5.8 GHz
- Max. MW transmission power (at 1m) : 0.003 μW / cm²
- Alarm memory : Yes
- Supply voltage : 9 to 15 VDC (12V nominal)
- Peak-to-peak ripple voltage immunity : 2V (at 12VDC)
- Detector start-up time : 60 s
- Power consumption : 5 to 16 mA (8 mA nominal)
- Mounting height : 1.8 to 3.0 m
- Detection speed: 0.2 to 3.0 m / s
- Alarm / sabotage relay characteristic : NC, 80 mA 30 VDC, Form A
- Alarm duration : 3s
- Operating temperature : -10 to + 55°C
- Relative humidity : 95% max. not condensing
- weight : 120 g
- Dimensions (H x W x D) : 126 x 63 x 50 mm
- IP / IK protection class : IP30 IK04
- VdS recognition : G 113516 (VdS Class B)
