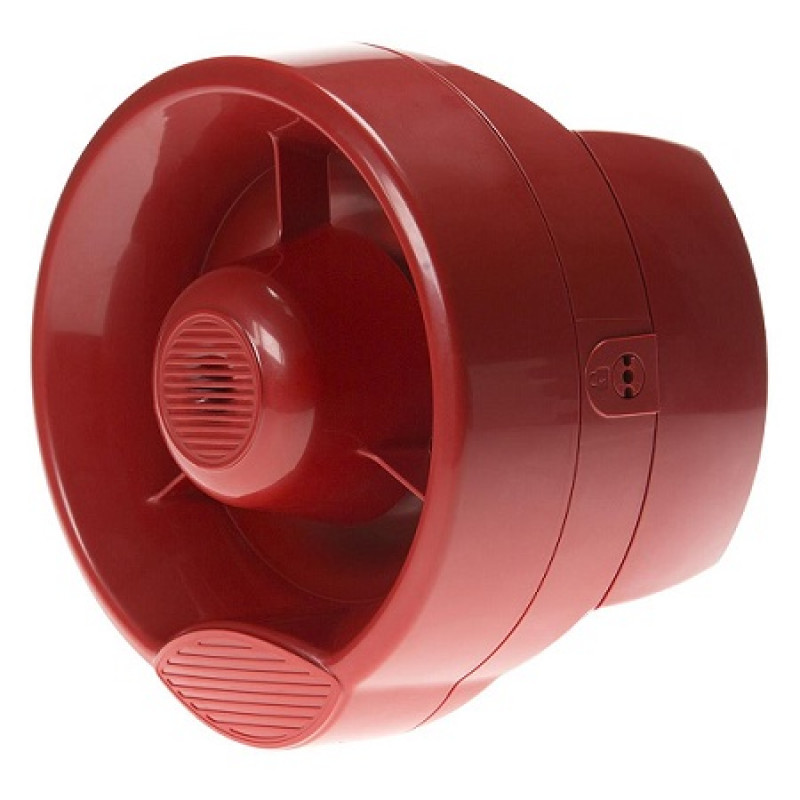

Argus (CWS100) Conventional Wall Sounder - Red
- Brand:Argus Security
- Product Code:CWS100
- Availability:Please Call or Email to Checkout
Argus (CWS100) Conventional Wall Sounder - Red
The CWS100 Conventional Wall Sounder forms the core of our modular alarm device range. The unit can either be used as a standalone conventional device or as an intelligent unit by the addition of a wired module (ALWS-MOD) or wireless module (SGWSMOD).
All devices are weather proof, therefore this combined with the modular approach means the majority of applications can be achieved with very few stock components. The unit is equipped with 3 levels of volume adjustment and 32 recognised tones which can be set via the control equipment or locally at the sounder.
Key Features:
- Flexible modular design, compatible with Argus intelligent & wireless modules
- 3rd party approval to EN54-3
- 32 Tone Settings
- Two stage alarm capability
- Weatherproof as standard
- High sound output capability
- On site adjustable volume settings
- Microphone self test facility
- Robust and high reliability
Specifications:
- Power supply voltage range: 15Vdc – 40Vdc
- Activated current load (High Vol.): 5-8 mA at 24 Vdc
- Acoustic Frequency range: 400-2900 Hz
- Maximum acoustic Output: 100 dB(A) @ 1m
- Operating temperature range: -25°C to +70°C (no icing)
- Unit weight (inc Back box): 290g
- Max humidity (non condensing): 95% RH
- Ingress Protection: Designed to meet IP 65
