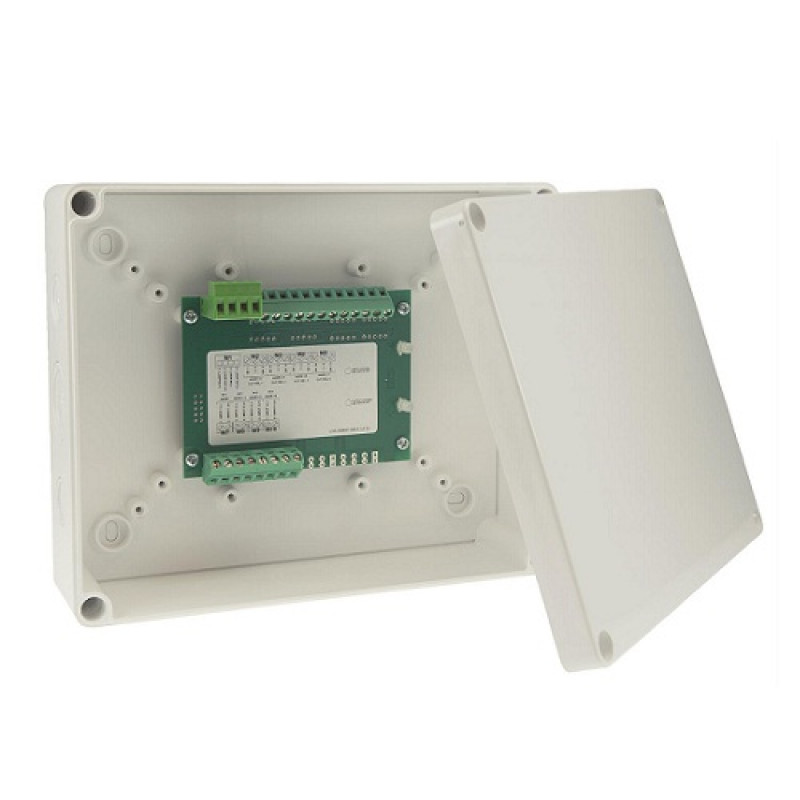

Argus (VMIC404) 4 Input and 4 Relay Output Module
- Brand:Argus Security
- Product Code:VMIC404
- Availability:Please Call or Email Us to Check Availability
Argus (VMIC404) 4 Input and 4 Relay Output Module
The VMIC404 multi-module series is a composed of 4 input channels and 4 output channels. Microprocessor controlled interface devices permitting the monitoring and control of auxiliary devices.
These are loop powered devices that operate according to the Argus analogue-intelligent protocol and are characterised by low current consumption; their particular design allow an easy and fast installation. A channel is a multi-module’s sub-device through which monitoring and control of analogue-loop-extraneous auxiliary devices is exerted by the analogue control panel. Multi-modules are, by a matter of fact, multi-channel devices.
Key Features:
- Short circuit isolator built in
- Auto addressing capability
- Addressable via handheld programmer
- Cable entry via knockouts on each side of the box
- Ideal for applications which require multiple inputs in the same location
- Ideal for applications that require multiple relay outputs
Specification:
- Device Operating Voltage: 18Vdc – 40Vdc
- Standby current: 500uA@24Vdc
- Supervised input and supervised output “end of line” resistor recommend value (REOL): 27 KΩ
- Supervised input auxiliary device’s series resistor to the switch recommended value (RSW): 10 KΩ
- Dimensions: 210mm x 170mm x 65mm
- Operating Temperature (no icing): -10°C to +55°C
- Max humidity (non condensing): 95% RH
- IP Rating: 65
