Apollo, 55000-299APO, Multi-tone Weatherproof Open-Area Sounder VID (White)

Apollo, 55000-299APO, Multi-tone Weatherproof Open-Area Sounder VID (White)

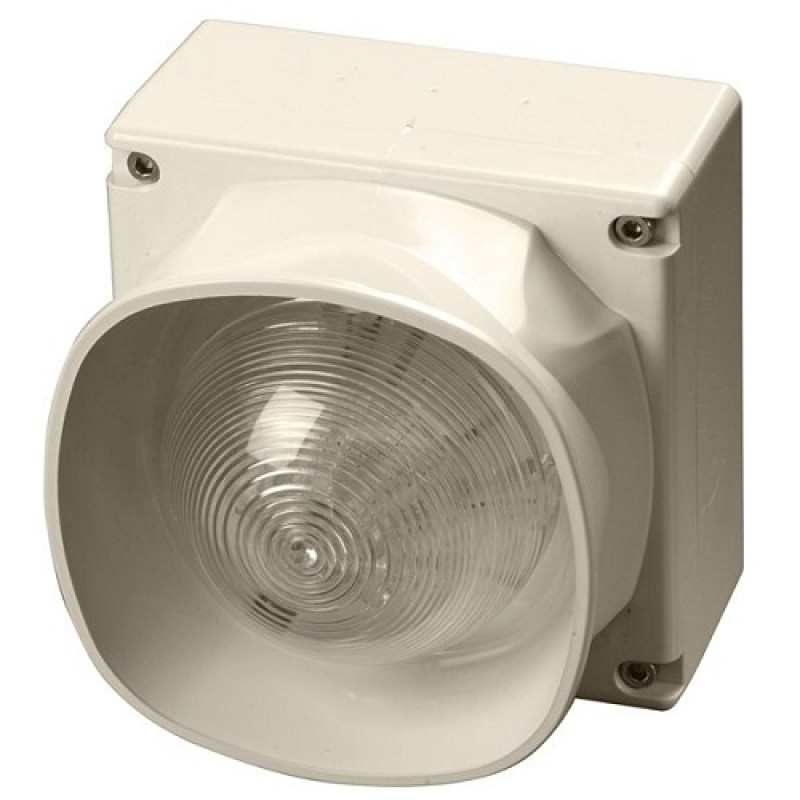

The Weatherproof Multi-Tone Open-Area Sounder Visual Indicator is designed for use in outdoor open areas and can be connected to any Discovery or XP95 system. The sounder visual indicator complements Apollo\'s intelligent and integrated base sounders as well as the Multi-Tone Open-Area Sounder.

The Multi-tone Open-Area Alarm Devices are powered directly from the loop and need no external power supply. They operate at 18 –28V DC and are polarity sensitive.

Synchronisation of the tones ensures the integrity of the signal – tones from different sounders do not merge into one signal that could be mistaken for a different tone.

A nominal sound output of 100dB(A) is achieved at a current consumption of 5mA in the case of the sounder and 9mA for the sounder beacon. Many control panels will be able to drive up to 20 sounders per loop on average. The maximum number of sounders that may be connected to a particular loop should, however, be determined by a loop loading calculation using the Apollo Loop Calculator.

Since the Multi-tone Open-Area Alarm Devices are intended for use in open areas, it is possible for more than one sounder to be audible at any given point in a building. For this reason, the operation of all the sounders may be synchronised by sending address ‘0’ in exactly the same way as for the XP95 Sounder Control Unit. Not only that, the Multi-tone Open-Area Alarm Devices can be assigned group addresses as well as individual addresses, so that the functional options of the sounder are identical with those of the Sounder Control Unit.

Key Features:

• Choice of tones on standard device: Apollo, Slow Whoop, and DIN
• IP66 rated
• Two Volume settings 92dB(A) and 100dB(A)
• Synchronisation of \'alert\' and \'evacuate\' tones
• Individual and group addressing
• Built in isolator

For more details, please refer with our attached datasheet.
