Apollo, SA6700-100APO, Twin Switch Monitor Unit (Incl. Back Box)
- Brand:Apollo Fire
- Product Code:SA6700-100APO
- Availability:Please Call or Email Us to Check Availability

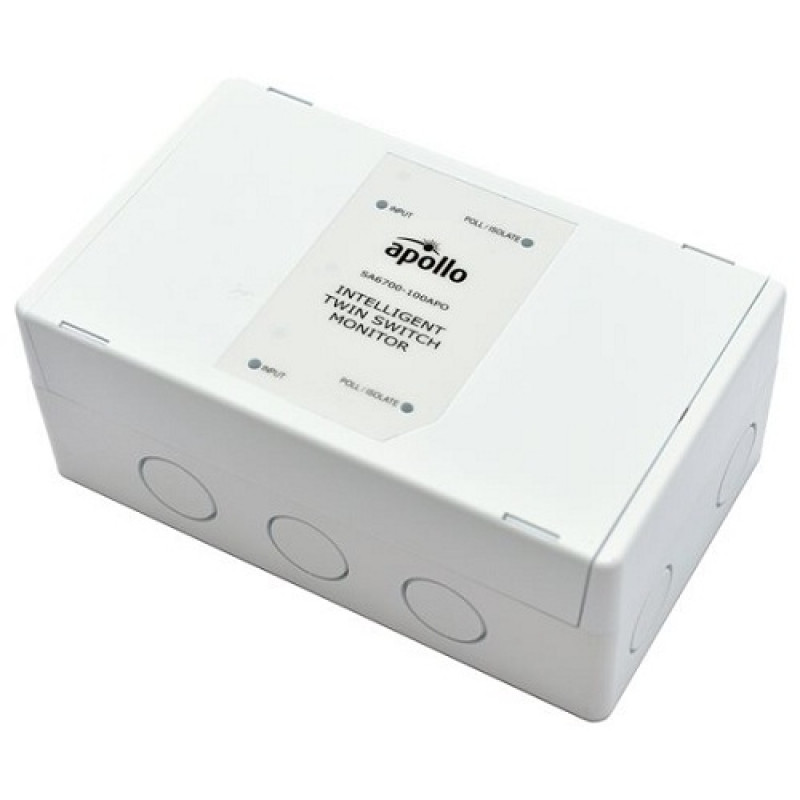

Apollo, SA6700-100APO, Twin Switch Monitor Unit (Incl. Back Box)
The Intelligent Twin Switch Monitor provides the function of two Switch Monitor units within one enclosure. The two units are electrically independent of each other. There is a DIL switch on each unit to set the address. Both Switch Monitor units in the enclosure are designed to monitor the state of one or more single pole, volt-free contacts connected on a single pair of cables to report the status. It has a selectable status reporting delay making it suitable for monitoring flow switches.
Mechanical Construction
The Intelligent Twin Switch Monitor is available in the new faceplate style enclosure. This can be mounted with the supplied back-box for surface mounting or flush mounted using a UK double gang, flush mounting back-box of minimum depth 30mm.
EMC Directive 2004/108/EC
The Intelligent Twin Switch Monitor complies with the essential requirements of the EMC Directive 2014/30/EU, provided that it is used as described.
Key Features:
- Improved design for ease of wiring meaning faster installation
- Contains controllable isolator
- Address range 1 - 254
- Five pre-configured modes, including compatibility mode from XP95/Discovery to CoreProtocol systems
- Priority mode for first response
- Configurable input styles
- Earth fault monitoring
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
