ATS1840, 8 Way Fuse Board, Separate Fused Power Supply Output
- Brand:UTC (Aritech)
- Product Code:ATS1840
- Availability:Please Call or Email Us to Check Availability

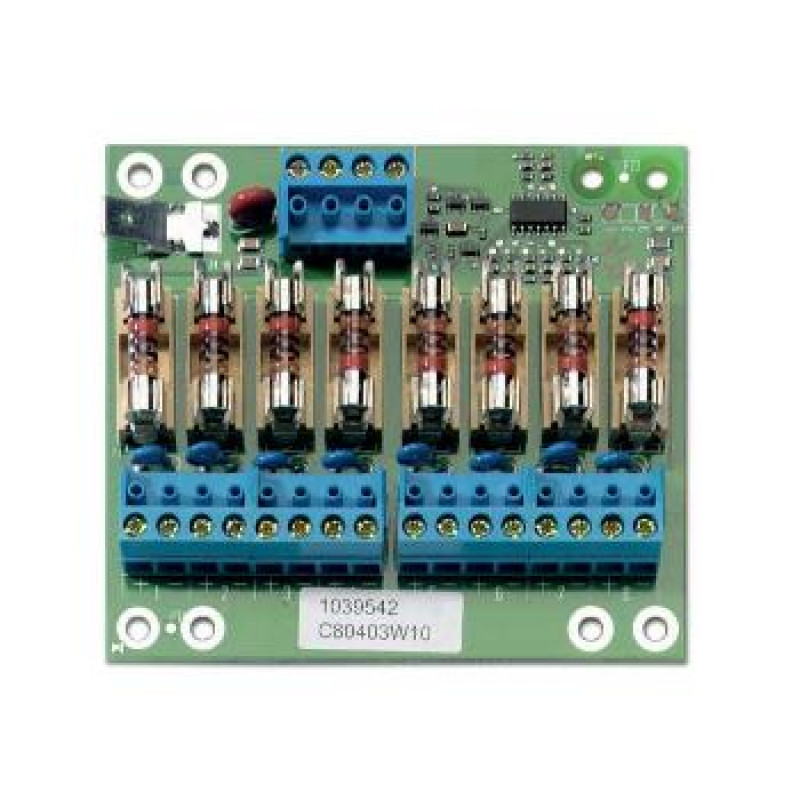

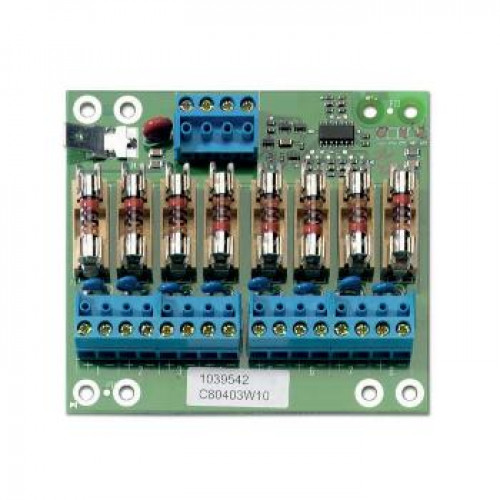

ATS1840, 8 Way Fuse Board, Separate Fused Power Supply Output
It is an 8-way fuse board to provide for separate fused power supply outputs. Fuse fail is indicated by a dedicated output that can be connected directly to any zone on the ATS control panel (or ATS1201 DGP).
Specifications:
- Supply voltage: 10.5 - 13.8 VDC
- Operating current: 3 mA max.
- Max. current/output: 315 mA max.
- Dimesions (W x H): 90 x 80 x 20 mm
- Operating temperature: 0° to +50ºC
- Humidity: 95% non condensing
