ATS1744, ATS RS485 4-Way Databus Isolator
- Brand:UTC (Aritech)
- Product Code:ATS1744
- Availability:Please Call or Email Us to Check Availability

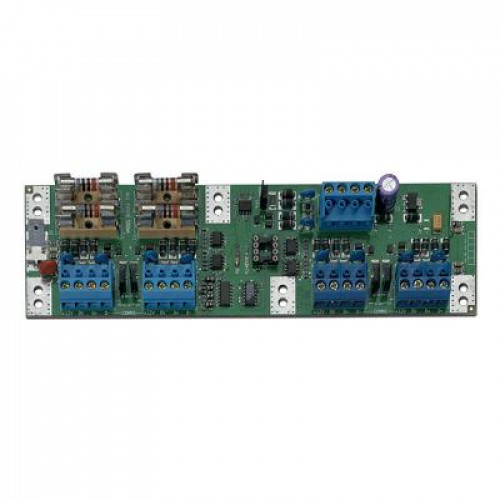

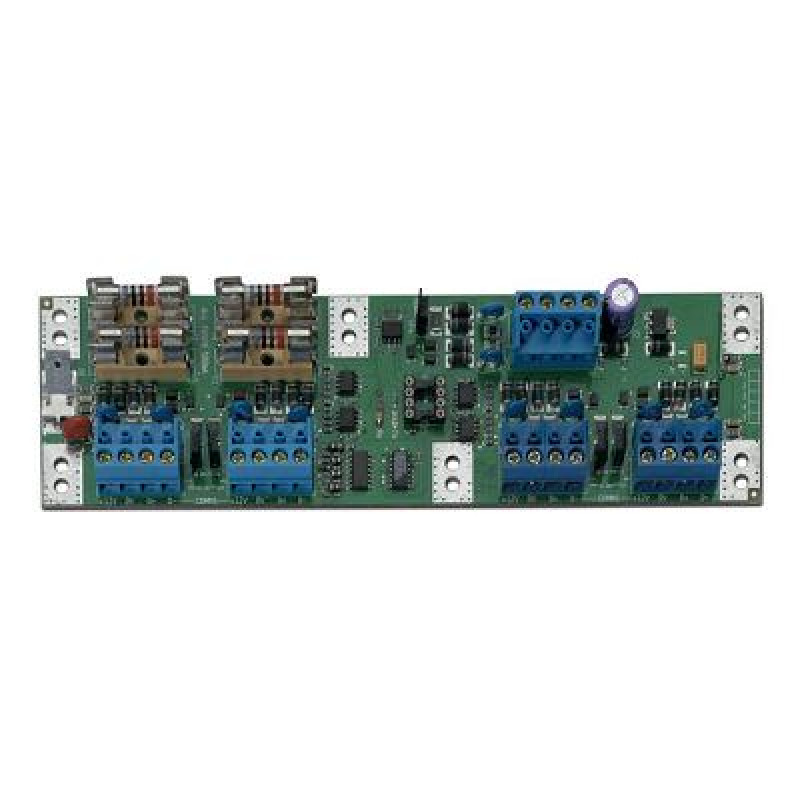

ATS1744, ATS RS485 4-Way Databus Isolator
The ATS1744 is a functional isolator for the ATS-Databus. It splits the RS485 ATS Databus into 4 isolated ATS-slave loops. These slave loops can be used to isolate peripherals from different areas. Therefore, the isolator can isolate up to 4 Areas. Shorts or open in one or more slave-loops will not interrupt the other slave-loops and the master-loop. A control panel, which controls 16 areas, can have 4 isolators. The fuse capacity of the control panel has to be taken into account in the calculation of the bus device currents in the system.
Key Features:
- 4 Way Databus Isolator
- Fits in any ATS housing
- On-board LEDs show data traffic
- A short on the bus communication of one output does NOT affect the communication of the other 3 outputs
For more details, please refer with our attached datasheet.
