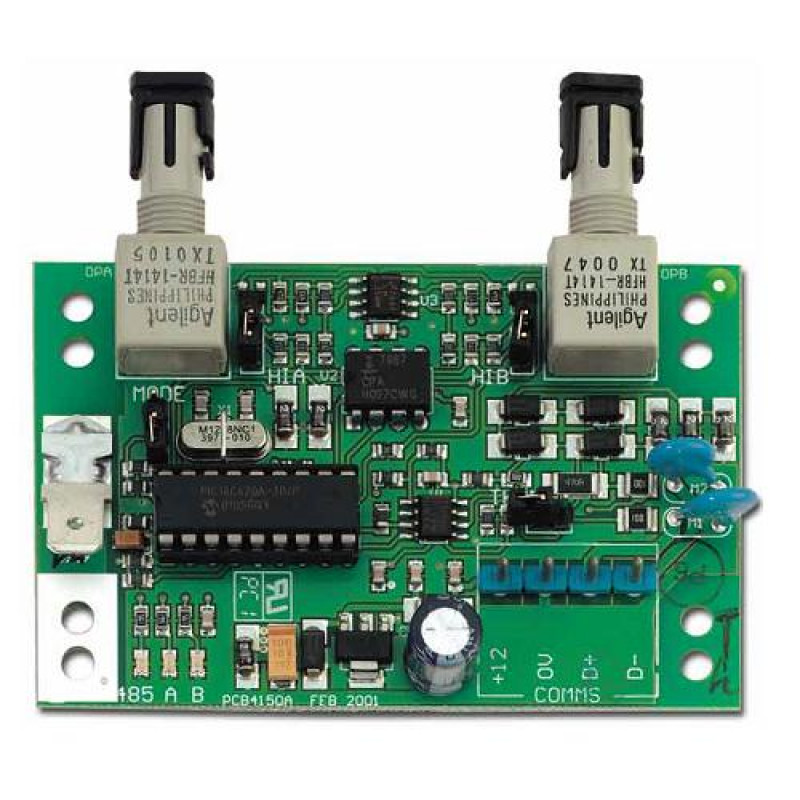

ATS1743, ATS RS485 Databus to Multimode Optical Fiber Interface
- Brand:UTC (Aritech)
- Product Code:ATS1743
- Availability:Please Call or Email Us to Check Availability
ATS1743, ATS RS485 Databus to Multimode Optical Fiber Interface
The ATS1743 is a RS485 to optical fibre interface for directly extending the Advisor MASTER data bus with optical fibre. The maximum fibre distance can be up to 1 km the next ATS1743 and a maximum of 2 pairs can be cascaded when the "normal copper" data bus wiring length is not extending more than 1.5 km to the panel. The great advantage of using optical fibre is that in general optical fibre is not subject to electromagnetic interference and there is less need to retransmit signals.
The ATS1743 is only designed for multimode optical fibre and can operate in 2 modes: Uni-direction - two fibres Bi-directions - one fibre There are two independent optical channels on the unit, which can be used (with two fibers) when you need a bit more power in case of signal loss by junctions etc. The most economical connection is the bi-directions fiber connection. Only one fiber is necessary in this situation.
Specifcations:
- RS485 to optical fibre interface
- Maximum fibre distance can be up to 1.5 km
- Maximum 2 units can be cascaded
- Uni-direction (two fibres) or Bi-directions (one fibre) mode can be used
- Multimode optical fibre only
For more details, please refer with our attached datasheet.
