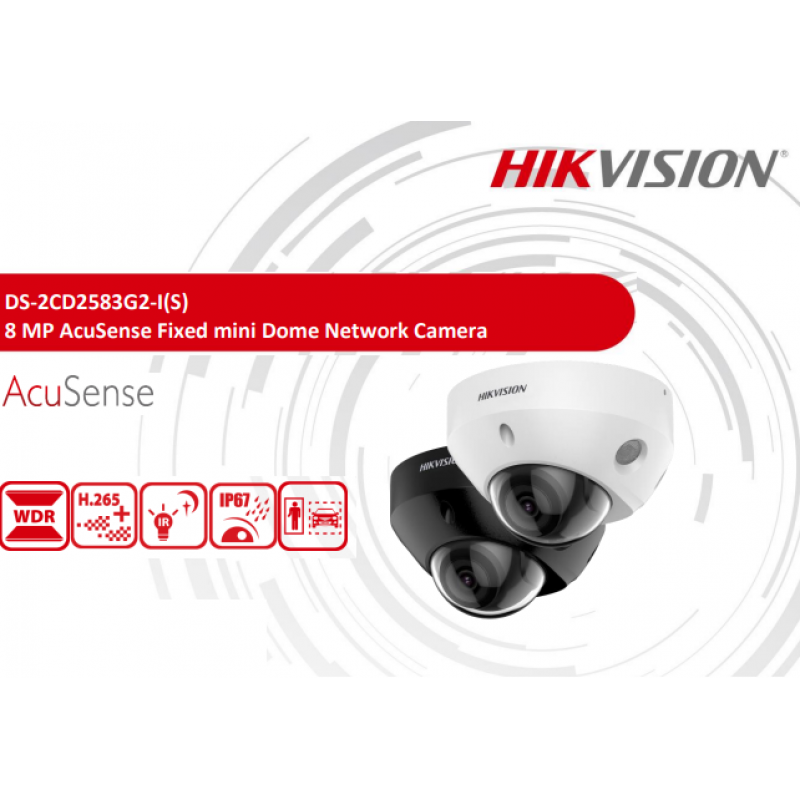

DS-2CD2583G2-IS(2.8mm), 8 MP AcuSense Fixed mini Dome Network Camera

DS-2CD2583G2-IS(2.8mm), 8MP AcuSense external mini dome, 2.8mm lens, H.265+,  DC12V & PoE, WDR, 30m IR, built-in mic

• High quality imaging with 8 MP resolution
• Clear imaging against strong backlight due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• -S: Audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK08)

Specification

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 106.4°, vertical FOV 58.4°, diagonal FOV 124.8°, 4 mm, horizontal FOV 87.6°, vertical FOV 44.4°, diagonal FOV 104.9°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth Of Field: 2.8 mm: 1.4 m to ∞, 4 mm: 2.1 m to ∞

DORI

• DORI: 2.8 mm: D: 88 m O: 35 m R: 18 m I: 9 m, 4 mm: D: 118 m O: 47 m R: 24 m I: 12 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
