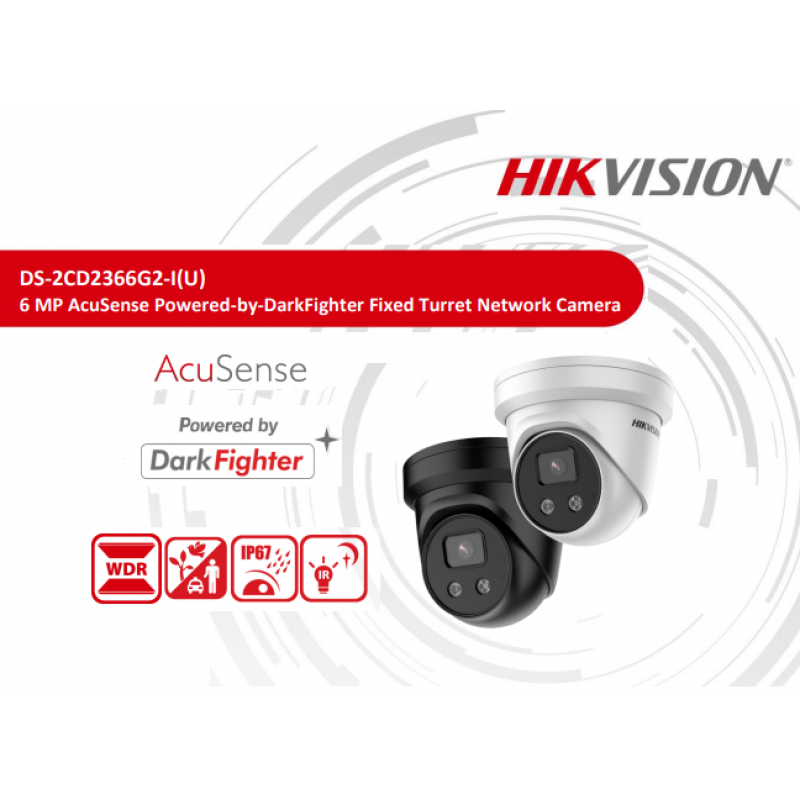

DS-2CD2366G2-IU(C), 6 MP AcuSense Powered-by-DarkFighter Fixed Turret Network Camera

DS-2CD2366G2-IU(C), 6MP AcuSense external turret, 2.8 or 4mm fixed lens, IP67, H.265+,  DC12V & PoE, WDR, 30m IR

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light by 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• Water and dust resistant (IP67)

Specification

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6°, 4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8°, 6 mm, horizontal FOV 47.5°, vertical FOV 26°, diagonal FOV 54.5°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI

• DORI: 2.8 mm: D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m, 4 mm: D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m, 6 mm: D: 160.0 m, O: 63.5 m, R: 32.0 m, I: 16.0 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

PRODUCT VARIANT ALSO AVAILABLE ON REQUEST

For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
