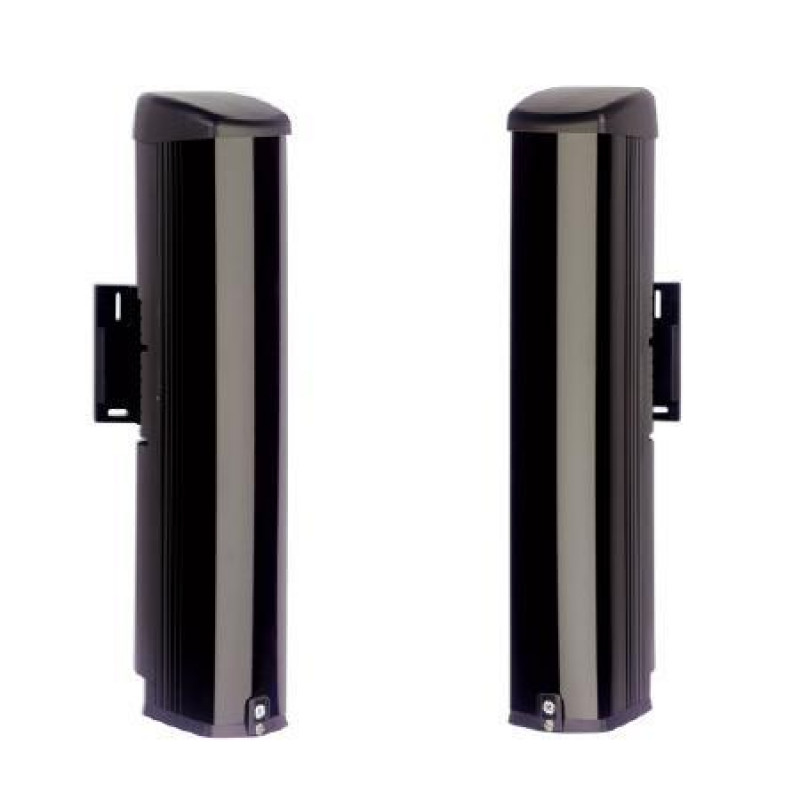

SB2100-N, AIR Twin Beam Detector, 100m Outdoor and 250m Indoor
- Brand:UTC (Aritech)
- Product Code:SB2100-N
- Availability:Please Call or Email Us to Check Availability
SB2100-N, AIR Twin Beam Detector, 100m Outdoor and 250m Indoor
This perimeter security product is for use outdoors. It detects intruders as soon as they enter a protected area and before they can gain access to people or valuable assets. The benefit gained from using perimeter products is that they reduce the risk from theft, damage or personal injury.
Outdoor sensors can also be used to complement indoor security sensors. Perimeter products are sensitive to environmental conditions, such as temperature extremes, rain, snow, animals, terrain and traffic, and these must be taken into account when installing the system.
We manufacture many types of outdoor sensors. We will help you select the best product and show you how to apply it to meet your needs. The hidden nature of Active InfraRed beams makes them difficult to notice. Consequently intruders are not even aware of their presence.
The new Active InfraRed Beams provide a high level of security for all applications. They have:
- 4-channel selection
- Disqualification relay
- Heater on each beam
These features are standard on all AIR beams sensors as we believe the same security level should be provided for all sites, whether 50 m or 200 m - 2 or 4 beams.
Key Features:
- 2 & 4 beams Active InfraRed
- Outdoor range 50 to 200 m
- 4 selectable channels
- On-board regulated heater
- Disqualification
- Modual pillar for 180° & 360° view
- Robust pillars up to 3 m tall
- Easy alignement
Specifications:
- Max range indoors: 250 m
- Max range outdoors: 100 m
- Number of beams: 2
- Beams interruption switching mode: All beams
- Intruder response time: 50 up to 600 ms
- Alarm relay interruption: 1 min
- Beam power supply: 10 to 15 VDC
- Beam current consumption (Reciever): 35 mA
- Beam current consumption (Transmitter): 20 mA
- Heater power supply: 10 to 15 VAC/VDC
- Heater current consumption (Reciever): 85 mA
- Heater current consumption (Transmitter): 85 mA
- Output relays: A/T & disq
- Operating temperature (with heater): - 25°C to +55°C
- IP rating: IP445
- Weight: 0.9 kg
- Built-in alignment: Optical viewfinder
