ACT5-EM, Prox Reader w Keypad -128 Codes
- Brand:Vanderbilt
- Product Code:ACT5-EM
- Availability:Please Call or Email Us to Check Availability

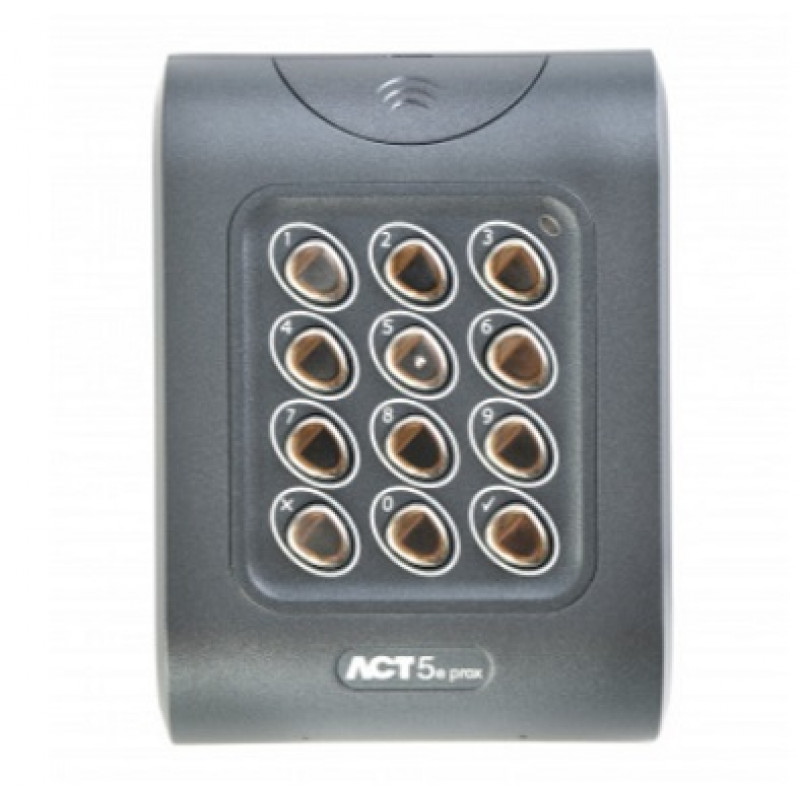

ACT5-EM, Prox Reader w Keypad -128 Codes
The ACT 5e prox keypad supports 128 users with PIN code and Card number. It is housed in a stylish IP 67 rated polycarbonate housing with stainless steel keys and potted electronics, allowing for indoor and outdoor installation.
Key Features:
- 128 PIN Code and Credential (works with ACTpro_ISO-B or ACTprox_Fob-B)
- Keypad Backlighting
- Incorrect Code Lockout
- 5 amp door relay output.
Specifications:
- Impact rating: IK08
- Users: 128
- Current consumption: 60mA (nominal), 100mA (max)
- Door capacity: 1
- Operating voltage: 12 - 24 Volts AC/DC
- Mounting: Surface / flush
- Installation: Indoor / outdoor
- Dimensions (L x W x H): 94mm x 130mm x 25mm
- Tamper protection: No
- Housing protection: IP55
- Operating temperature: -40 to +70°C.
For more details, please refer with our attached datasheet.
