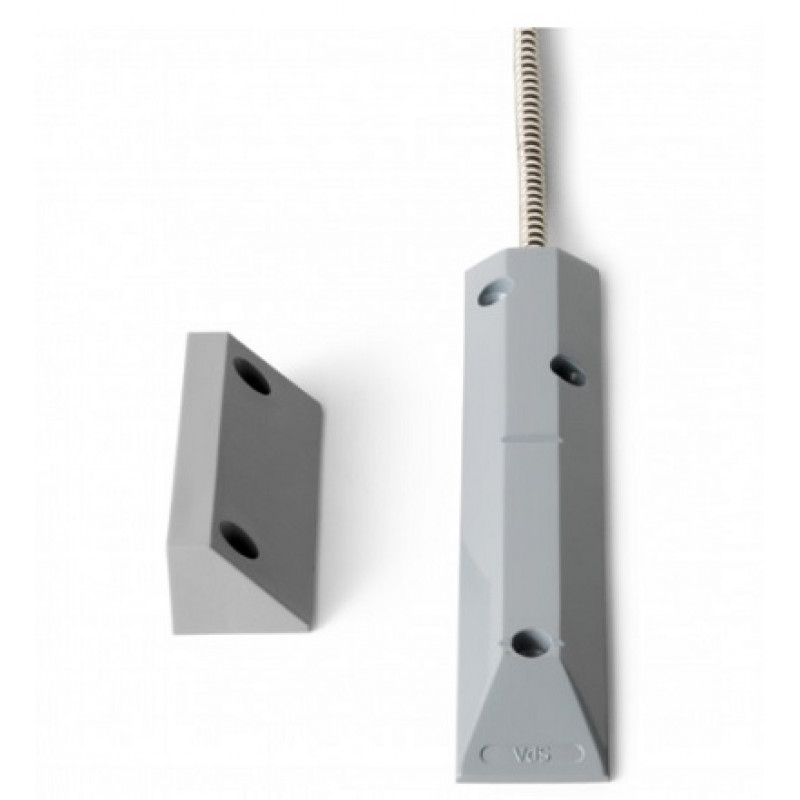

MK-2400-S2, Magnetic Contacts ,Set2,Al,6/0.5m
- Brand:Vanderbilt
- Product Code:MK-2400-S2
- Availability:Please Call or Email Us to Check Availability
MK-2400-S2, Magnetic Contacts ,Set2,Al,6/0.5m
The mounting is mostly on rolling, sliding, tilting, etc. gates. Through the protection painted Aluminum housing the magnetic contact is resistant to sea water and is therefore also suitable for shipbuilding. Due to the weather-resistance and mechanically stable design of the contact housing, the circuit is largely protected from damage when driving with rubber-tired vehicles. The cable is protected by a 0.5m metal tube. Secondary package: 6 Units.
Key Features:
- Robust housing made from Aluminum and polymide
- Metal tube for cable protection
- Ingress protection to IP67
- Good long term stability
- Fast and efficient mounting.
Specifications:
- Approval: VdS Klasse B EN 50131-2-6, Grade 2 SBSC, Larmklass 1/2
- Cable length: 6 m (metal tube 0.5 m)
- Operating temperature: -40 ~ +70 °C
- Contact rating: Max. 6 W
- Switching current: Max. 500 mA
- Switching voltage: Max. 100 VDC
- Environmental class: III
- Housing protection: IP67
- Power supply: Max. 40 VDC.
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
