IRRM 1, Relay Card
- Brand:Vanderbilt
- Product Code:IRRM1
- Availability:Please Call or Email Us to Check Availability

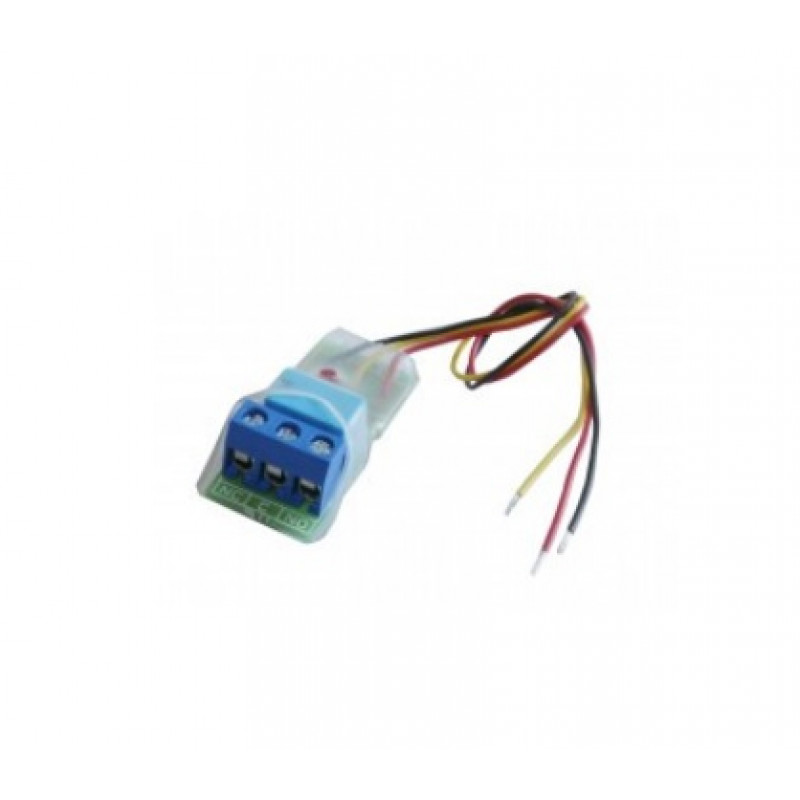

IRRM 1, Relay Card
One change over contact with a high impedance input to control the relay. If the control input is connected to minus the relay is energised and a LED indicate. IRRM1 has wires at the input. Relay driving circuit provides wide supply voltage range – from 9V to 30V.
Key Features:
- Converts open collector outputs to volt free contacts
- Wide operating voltage range
- Low current consumption
- Discrete and compact.
Specifications:
- Mounting: Self-adhesive tape
- Inputs: 3 x 15 cm wires
- Voltage: 9 ~ 30 VDC
- Outputs: 3 pin screw terminal
- Operating voltage: 9 ~ 30 VDC
- Operating temperature: -40 ~ +70°C
- Current consumption: 12 mA ~ 21 mA
- Current: 12 mA ~ 21 mA
- Contact rating: 30 W, 30 V DC/AC, 1 A.
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
