HD-FK300, Foot Rail 300mm
- Brand:Vanderbilt
- Product Code:HD-FK300
- Availability:Please Call or Email Us to Check Availability

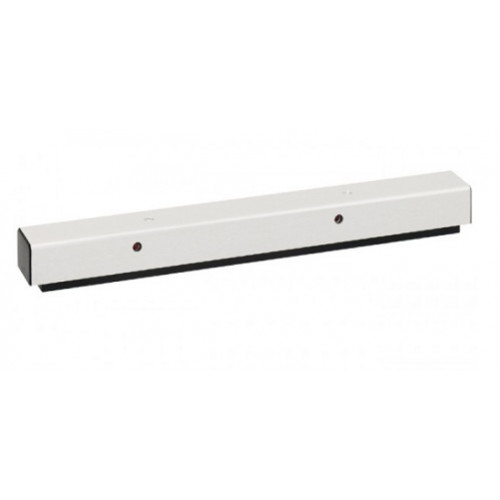

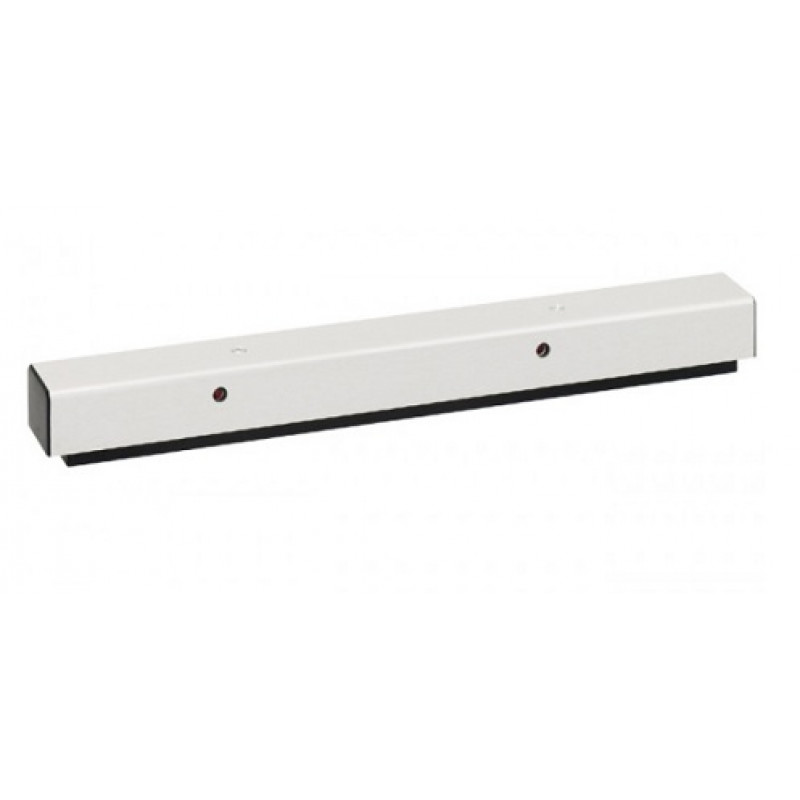

HD-FK300, Foot Rail 300mm
The hold-up floor alarm bar is installed as a hold-up detector, in particular under counters, office desks, shop counters or similar installations. When the alarm bar is triggered, one of the two microcontacts is activated and the detector group is interrupted and an alarm triggered. Triggering is displayed permanently via two mechanical individual displays. This display can only be reset manually by piercing the relevant indicator and renewing after resetting. In this manner, it is possible to exactly identify the detector that has triggered the alarm. With each rail there are additional ten indicators delivered for replacing the pierced ones.
Key Features:
- Discrete design
- Floor or under counter mounting
- Alarm indication
- Latching with simple reset
- Silent operation
- Tamper protection
- Design consideration for ease of installation.
Specifications:
- Switching current: max 0.1 A
- Housing material: Aluminium, anodized
- Dimensions (L x W x H): 300 x 30 x 36 mm
- Approval: VdS Klasse C, Nr. G 186030 VSÖ Klasse WS, Nr. W 130603/68 E
- Switching voltage: 42 VDC.
For more details, please refer with our attached datasheet.
