484, Panic Button, Optical Indicator
- Brand:Vanderbilt
- Product Code:484
- Availability:Please Call or Email Us to Check Availability

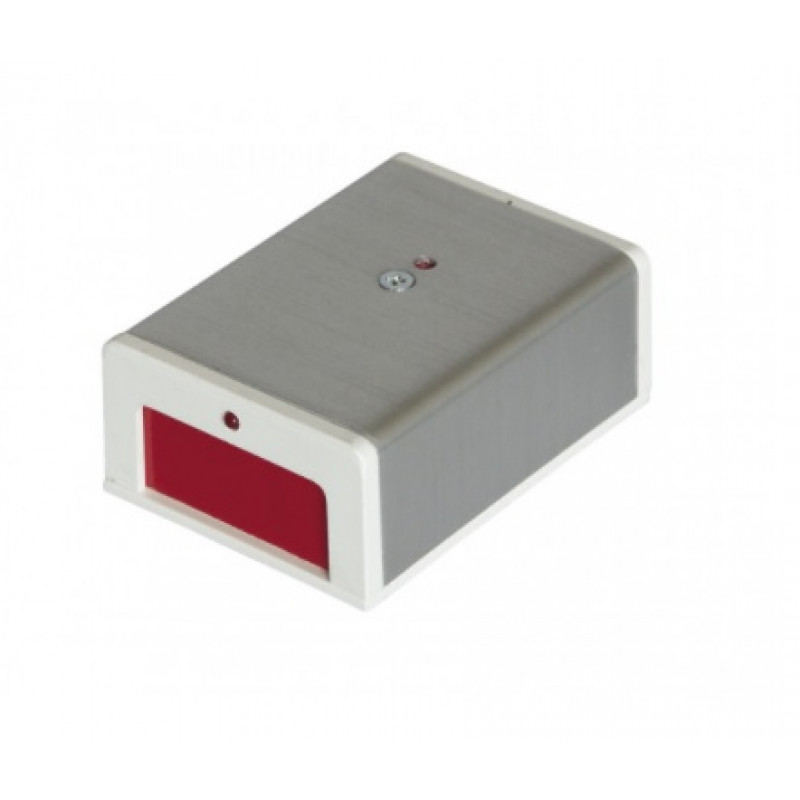

484, Panic Button, Optical Indicator
Reed button designed for the silent signaling of robberies in action. By pushing the button, a magnet gets close to the internal reed and opens the contact, thus triggering the alarm. Self-protection against opening through internal reed. Internal reeds are designed for NC operation. Simplified installation thanks to the two-sided tape included. LED memory with central reset (by cutting power supply), button with spring return, 6-terminal connection: 2 for contact, 2 for ant-tampering, 2 for power supply
Key Features:
- Silent operation
- Protection against opening
- Version with LED memory.
Specifications:
- Housing protection: IP32
- Housing material: Thermoplastic
- Dimensions (L x W x H): 72 x 52 x 28 mm
- Contact rating: Max. 1 A / 75 V
- Current consumption: 10 mA
- Power supply: 12 VDC
- Colour: White
- Operating temperature: +5 ~ +40° C.
For more details, please refer with our attached datasheet.
