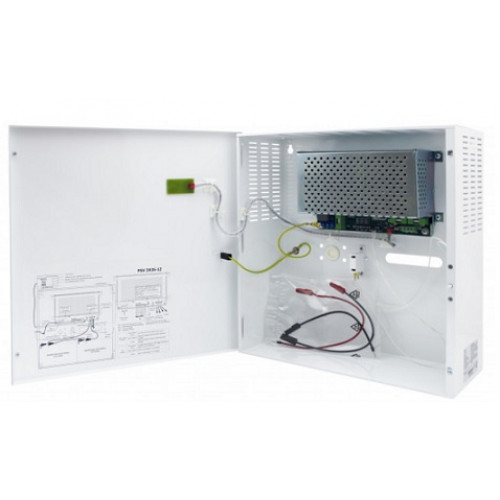

2435VIP, PSU 24V/3.5A/12Ah

2435VIP, PSU 24V/3.5A/12Ah

Power supply units with ViP feature can be connected in parallel both (+) and (-) on one common power bus without a need of additional synchronization. Connected units will share load on a bus. ViP feature can be used to build distributed and redundant power systems. It can be also used to compensate voltage drops on a bus by placing power supply units in distant bus sections. Power conversion is based on high frequency SMPS regulator providing high conversion efficiency. Low losses inside unit preserve batteries from overheating shortening battery life time. Computerized battery recharging circuit works in constant potential – limited current mode – the best mode to provide the longest possible battery life time. Power unit is equipped with built-in diagnostic system detecting and signalling mains failure, different battery failures including end-of-life warning, output faults like low voltage or broken fuse. Battery is not included.

Key Features:

• Power supply for 24v DC systems
• Space for 2 x 12.0 Ah batteries, which can provide 0.25A for 30 hours standby
• Capable of parallel connection for increased capacity & reliability
• Short circuit & overload potection
• Mains failure detection
• Monitors for three different battery faults
• LED confirmation of fuse failures
• Deep discharge protection for the batteries
• Tamper contats for lid and removal
• Internal & automatic battery testing function.

Specifications:

• Power output: 3 A
• Output voltage: 27.6 V
• Operating temperature: +5 ~ +40 °C
• Dimensions (L x W x H): 345 x 325 x 130 mm
• Current: 3,5 A
• Battery: 2 x 12 V / 12 Ah
• Input voltage: 230 VAC.

For more details, please refer with our attached datasheet.
