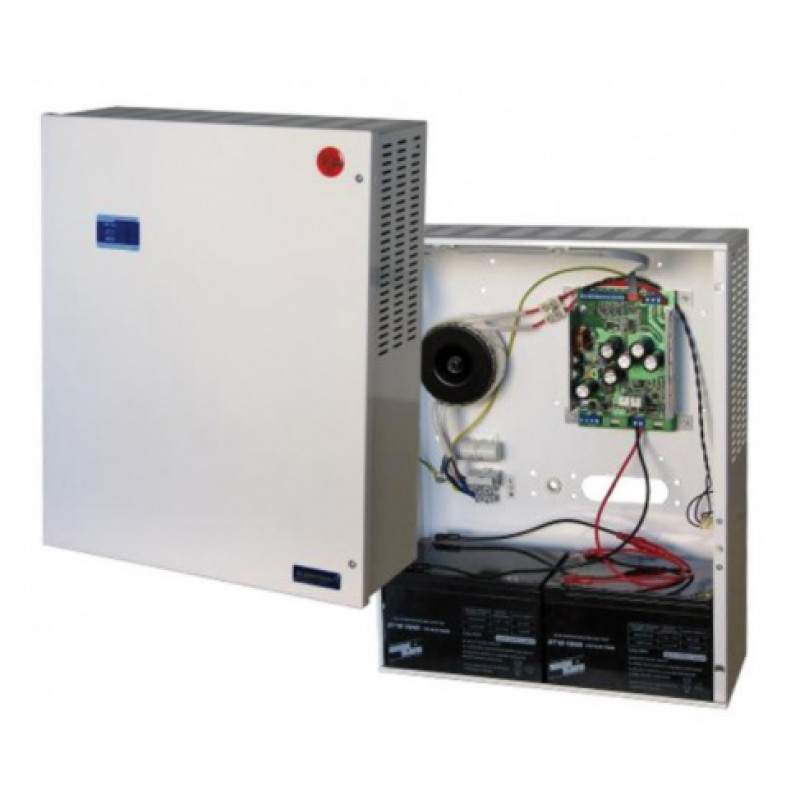

2415VIP, PSU 24V/1.5A
- Brand:Vanderbilt
- Product Code:2415VIP
- Availability:Please Call or Email Us to Check Availability
2415VIP, PSU 24V/1.5A
Power supply units with "voltage in parallel" mode. The units can be connected in parallel both (+) and (-) on one common power bus without a need of additional synchronization. The connected units will share load on a bus. Can be used to build distributed and redundant power systems. Battery not included.
Key Features:
- Power supply for 24v DC systems
- Space for 2 x 7Ah batteries, which can provide 0.125A for 30 hours standby
- Capable of parallel connection for increased capacity & reliability
- Short circuit & overload potection
- Mains failure detection
- Monitors for three different battery faults
- LED confirmation of fuse failures
- Deep discharge protection for the batteries
- Tamper contats for lid and removal
- Internal & automatic battery testing function.
Specifications:
- Tamper switch: Door and removal
- Tamper contact: Door and removal
- Output voltage: 27.6 VDC
- Operating temperature: +5 ~ +40 °C
- Input voltage: 230 VAC
- Indicators: External LED's Green - mains present Yellow - mains mising Red - fault detected
- Housing material: Metallo, bianca
- Housing: Metal, white
- Dimensions (L x W x H): 330 x 400 x 130
- Current: 1.5 A
- Battery: Space for 2 x 12 V / 12 Ah
- Environmental class: Class II.
For more details, please refer with our attached datasheet.
