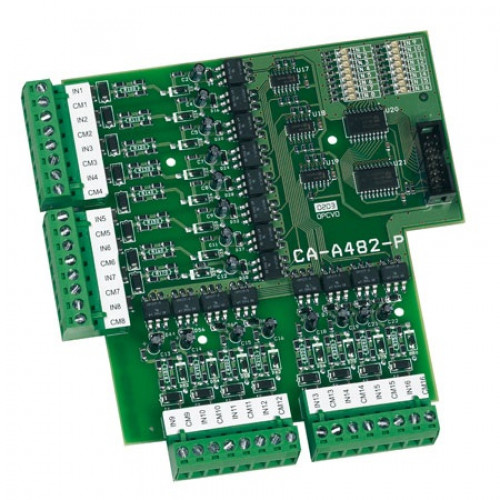

CDVI, CAA-482P, Lift Destination Module

CDVI, CAA-482P, Lift Destination Module

The CAA482P has 16 inputs, one for each control relay of the CAA480A elevator controller. Once a valid card (code) is presented, the user can choose only one floor. Once the floor is selected, all other floor selection buttons are deactivated. The user then presents the card/code again to choose another floor. Every presentation and floor selection is stored by the system which also registers valid and invalid transactions.

• Inputs: 16 inputs for choice
• Response time for input: 700ms
• Connection: direct connection to the CAA480A lift controller for floor selection
• Power supply: 5Vdc
• Consumption: 28mA, 108mA (max)

Key Features:

• Direct connection to CAA480A lift controller for floor selection
• Registers valid and invalid transactions
• 16 inputs
• LED activation
• Simple connection

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
