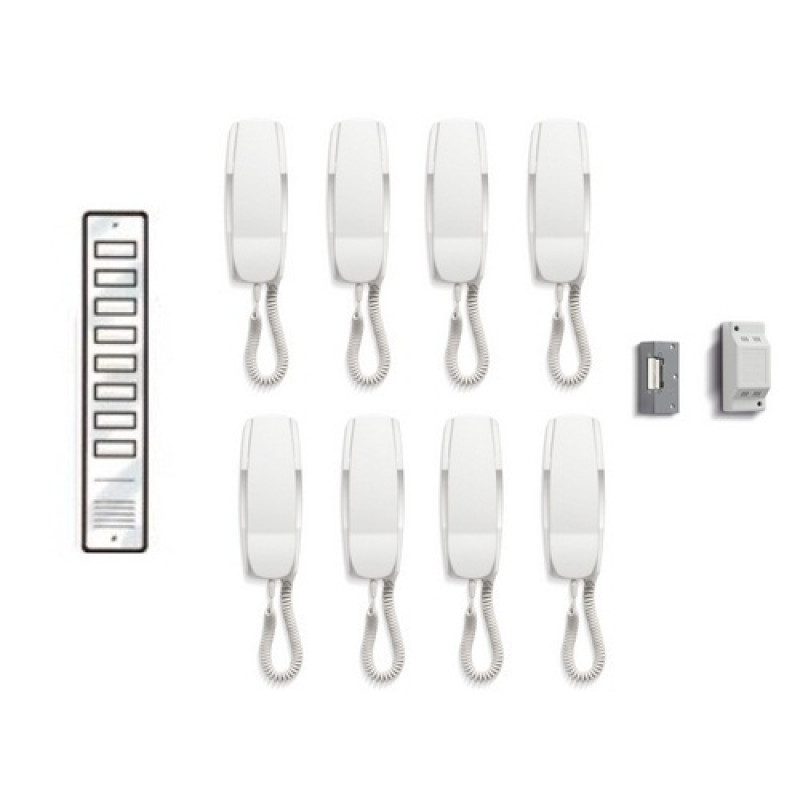

908, 8 Station Audio Door Entry Systems

908, 8 Station Audio Door Entry Systems

The 900 Series door entry systems are recognised for their high quality and competitive pricing and are widely accepted as the industry standard. Each system provides all of the components necessary to install a complete audio door entry system; including a surface lock release as standard. These systems are available from a one way (model 901) up to any size.

Each 900 series system comprises:

• model 801 telephone, one for each station
• model SPA front door panel
• model 61 speech unit (model 51above 10 ways)
• model 203 surface lock release
• model 212 12VAC PSU (model 225 above 10 stations)
• Full wiring and installation instructions

1) 801, Standard Wall Mounted Audio Telephone

This telephone still proves to be the most popular in the UK market owing to its exceptional reliability and economical price. Recently the telephone has undergone a re-styling which, whilst maintaining its classic design, will ensure its popularity for many years to come.

The model 801 telephone operates from 12V AC or 12 V DC and is included in the standard model 900 and VRK audio door entry systems.

Dimensions:

H = 212mm, W = 85mm, D = 55mm

2) Speech Unit Model 61
This compact unit is fitted to the entrance panel on all our current door entry systems(except as indicated below). The unit provides two-way speech and has an individual volume control for both microphone and speaker. This universal product can be powered from either 12V AC or 12V DC depending on the model of telephone used.

Dimensions: H = 97mm, W = 58mm, D = 24mm

3) Lock Release

The standard lock releases are designed to operate with night latch locks on timber framed doors. Each release is fabricated from a variety of materials:

• Main mechanism - plated zinc
• Latch - chrome-plated mazac zinc alloy.
• Faceplate - epoxy painted steel
• Side cover - stainless steel

4) Model 212 (12v AC)
A wall-mounting, double insulated, fused transformer included in basic audio door entry systems up to 10 stations. It has a nominal output of 12v AC @ 1Amp. Compliant with EN60950.

Dimensions: H = 140mm, W = 60mm, D = 53mm
