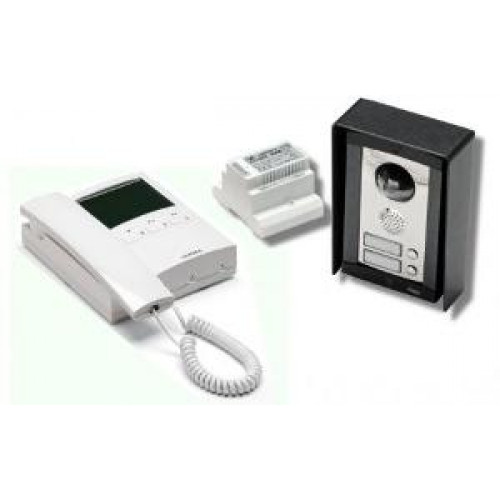

Videx, CVK8K2S, Two Way 8000 Series Surface Colour Video Kit

CVK8K2S, VIDEX, TWO WAY SURFACE COLOUR FOR 1 AND 2 BUTTON 8000 SERIES VIDEO KITS.

The flexible design allows for the addition of up to a total of 4 entrance doors and up to 4 video handsets per call button with intercommunication between the handsets. Other facilities include adjustable call tone and time, camera recall (selectable), timed mute facility with led indication. Door panels have adjustable reassurance tone and call progress led's for calling, speak, door open and system busy. The system does not require coaxial cable. Available in surface (/S) with aluminium or black(/BL) surround

Specifications:

• Number of entrances: 1 (Expandable to 4)
• No. Of cores to videophone: 6 from panel, 2 from PSU
• PSU: 24Vac
• Recommended cable type: CW1308
• Maximum number of call buttons: 2
• Maximum No. Of videophones per call button: 4
• Lock output: 12Vdc or dry contact
• Videophone model: 3656
• PSU model: 850K
• Amplifier module: 8833/C

For more details, please refer with our attached datasheet.
