Videx, 8K-10S, 10 Button Surface 8000 Series Audio Door Entry Kit with Stainless Steel or Aluminium Finish

8K-10S, Videx, 10 Button Surface 8000 Series Audio Door Entry Kit with Stainless Steel or Aluminium Finish

Audio entry kit based on the 8000 Series modular design incorporating two way speech, electronic call tone and lock release facility. The door station is available surface or flush mounting with up to 12 call buttons each with a back lit name plate. The standard finish is a stainless steel facia with aluminium surround. An aluminium facia (/A) and a black surround (/BL) are also available. The telephone is wall mount with a lock release button and a three position call tone volume control. Up to 2 additional telephones can be installed in each apartment. A code lock can be added (/CL). The codelock has 2 codes, 2 changeover relay outputs and an override input. It can be programmed from 1-99 seconds or latching output.

8000 Series Audiokit:

The circuitry of the outdoor stations provided with these kits, has a built-in lock relay to enable the electric lock. This reduces the cable requirements to only 4 (“3+1”) between the outdoor station and the intercom. This reduced cable requirement allows longer cable runs and reduced cable sizes to be used between the two units.

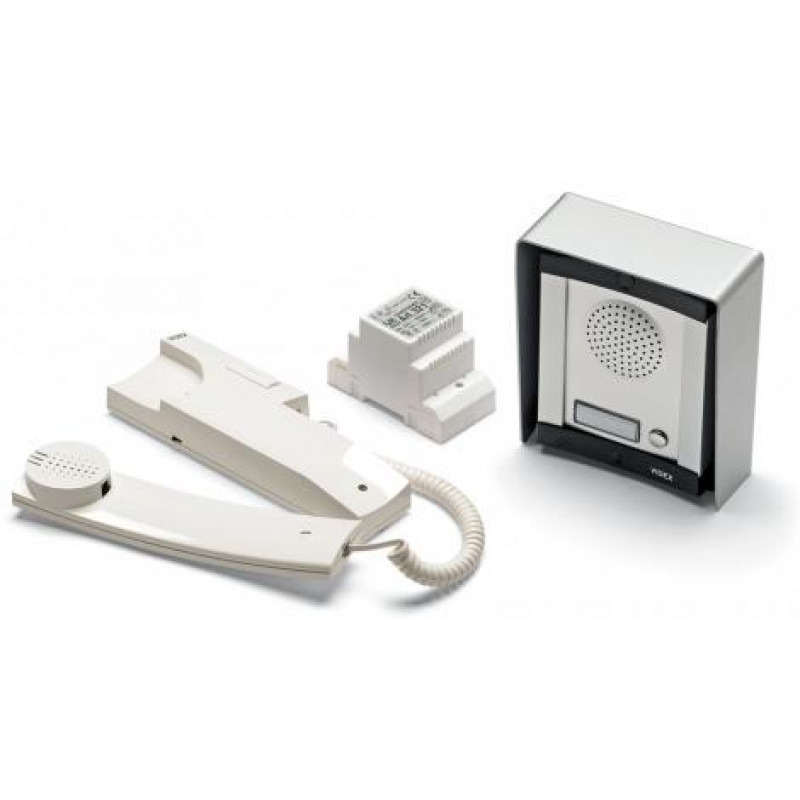

Ten button door entry kit comprised of:

• Outdoor station including One call button speaker unit Art.8836M-1, flush mounting box with module support and hinge
• Art.8851 plus covering frame Art.8861. Standard finishes: mirror stainless steel for the front plate and aluminium for the module support.
• Art.3011 3000 Series Smart Line wall mount telephone with “door open” push button and electronic call tone with adjustable volume on 3 levels.
• Art.321 Power Supply in a type A 3 module DIN box.
• Art.8881 surface mounting box

Specifications:

• Number of entrances: 1
• No. Of cores to telephone: 4
• Recommended cable type: CW1308
• Maximum No. Of telephones per call button: 3
• Lock output: 12Vac
• Telephone model: 3011 (call tone)
• PSU model: 321 (13Vac)
• Amplifier module: 8836M
