Videx, 8K-1, 1 Button Flush 8000 Series Audio Door Entry Kit with Stainless Steel or Aluminium Finish

Videx, 8K-1, 1 Button Flush 8000 Series Audio Door Entry Kit with Stainless Steel or Aluminium Finish

  • Brand:Videx
  • Product Code:8K-1
  • Availability:Please Call or Email to Checkout

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


8K-1, Videx, 1 Button Flush 8000 Series Audio Door Entry Kit with Stainless Steel or Aluminium Finish

Audio entry kit based on the 8000 Series modular design incorporating two way speech, electronic call tone and lock release facility. The door station is available surface or flush mounting with up to 12 call buttons each with a back lit name plate. The standard finish is a stainless steel facia with aluminium surround. An aluminium facia (/A) and a black surround (/BL) are also available. The telephone is wall mount with a lock release button and a three position call tone volume control. Up to 2 additional telephones can be installed in each apartment. A code lock can be added (/CL). The codelock has 2 codes, 2 changeover relay outputs and an override input. It can be programmed from 1-99 seconds or latching output.

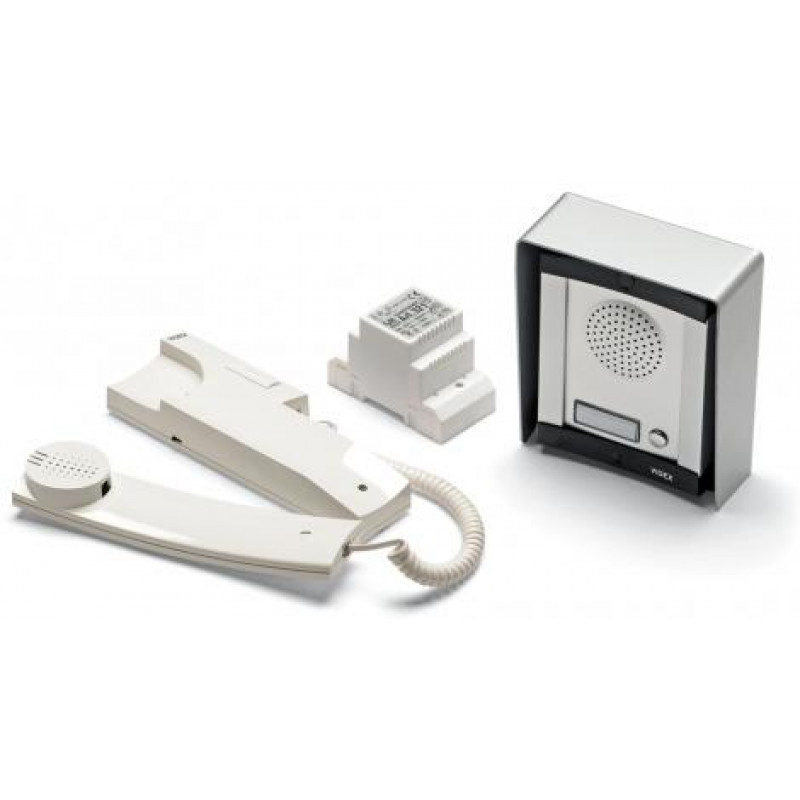

One button door entry kit comprised of:

  • Outdoor station including a one call button speaker unit Art.8836M-1, flush mounting box with module support and hinge
  • Art.8851 plus covering frame Art.8861. Standard finishes: mirror stainless steel for the front plate and aluminium for the module support.
  • Art.3011 3000 Series Smart Line wall mount telephone with “door open” push button and electronic call tone with adjustable volume on 3 levels.
  • Art.321 Power Supply in a type A 3 module DIN box.
  • Packing: box 30.5x29x7cm total weight 1.4 Kg.

Specifications:

  • Number of entrances: 1
  • No. Of cores to telephone: 4
  • Recommended cable type: CW1308
  • Maximum No. Of telephones per call button: 3
  • Lock output: 12Vac
  • Telephone model: 3011 (call tone)
  • PSU model: 321 (13Vac)
  • Amplifier module: 8836M
