Videx, ESVKX-2/6286, 2 Wire Videokit - 2 Button/Flush Mount W/ 3.5" Videophone

Videx, ESVKX-2/6286, 2 Wire Videokit - 2 Button/Flush Mount W/ 3.5" Videophone

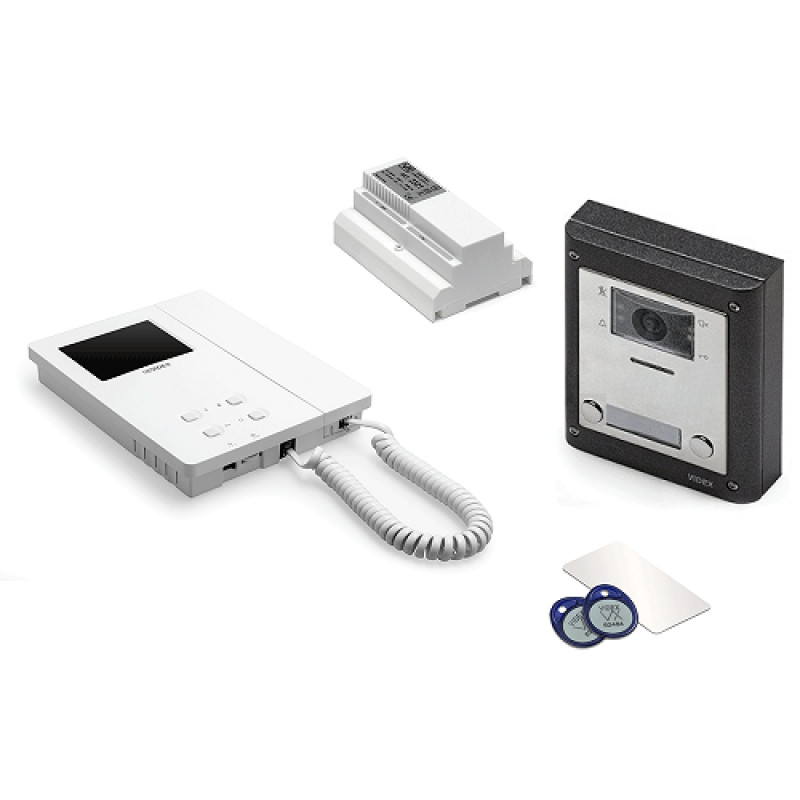

Two button flush mount 2 wire videokit with 3.5" videophone (Includes proximity reader). The videokit is available in a selection of different finishes (stainless steel, aluminium or high-brass fascias with either gun metal grey, chrome or gold front support frames) and with a selection of different videophone options including (3.5" hands-free) 2 wire bus videophone.

Installations couldn’t be easier thanks to the common 2 wire bus using two non-polarity wires. The videokit is ideal for small scale “one to one” installations or low-rise apartment blocks (up to 12 apartments max.), but can also be expanded up to 8 entrances (max.) where additional 2301N multiple entrance switchers are required.

The proximity access control feature is able to support up to 50 programmable users using either the standard Videx 955/T proximity fobs or the 955/C proximity cards.

Key Features:

• High quality day/night colour camera with 4 illumination LED’s and 13° camera tilt adjustment
• Option for wide angle camera (170° viewing angle)
• Proximity access control option for up to 50 users
• DDA compliant call progress LED’s and reassurance tones
• Selective camera recall facility and external camera input
• PTE input and lock release relay or capacitor discharge output
• Adjustable microphone, speaker and balance controls

Technical Specifications:

• Display: 3.5" Hi-Res colour LCD TFT
• Conventional /hands free: Conventional
• Buttons / Services1: 4: Service, Privacy/Bus relay activation, Door-open/Intercommunicating call, Camera recall/Camera switch
• Leds: 3: Door open, Privacy ON, ON
• Memory board opt.: Yes, up to 100 pictures stored in built in memory
• Adjustment: Call tone volume, Hue, Contrast, Brightness
• Programming: Privacy duration, Melody type, Number of rings, Intercommunicating call
• Mounting: Flush
• Finishing: Satin white

For more details, please refer with our attached datasheet.
