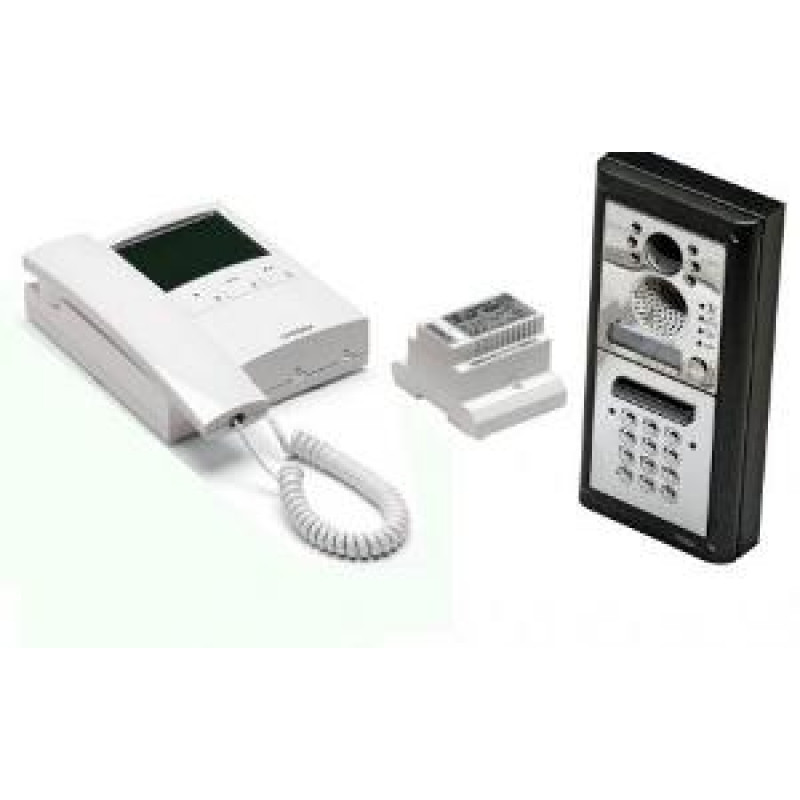

Videx, CVKC4K2, Two Button Flush Mounted Colour Video Kit with Codelock Facility in 4000 Series Housings

CVKC4K2, VIDEX, TWO BUTTON FLUSH MOUNTED COLOUR VIDEO KIT with CODELOCK FACILITY in 4000 SERIES HOUSINGS

1 and 2 button 4000 series colour video kits with codelock. The flexible design allows for the addition of up to a total of entrance doors and up to 4 video handsets per call button with intercommunication between the handsets. Other facilities include adjustable call tone and time, camera recall (selectable), timed mute facility with led indication. Door panels have adjustable reassurance tone and call progress led's for calling, speak, door open and system busy. The codelock has 3 codes, 2 changeover relay outputs and an override input. It can be programmed from 1-99 seconds or latching output. The system does not require coaxial cable. Available in surface (/S) and flush

Specifications:

• Number of entrances: 1 (Expandable to 4)
• No. Of cores to videophone: 6 from panel, 2 from PSU
• Codelock: 2 codes, 2 relays
• Code length: 4-8 digits
• PSU: 24Vac
• Recommended cable type: CW1308
• Maximum number of call buttons: 2
• Maximum No. Of videophones per call button: 4
• Lock output: 12Vdc
• Videophone model: 3656
• PSU model: 850K
• Amplifier module: 4833/C
• Codelock: 4800

For more details, please refer with our attached datasheet.
