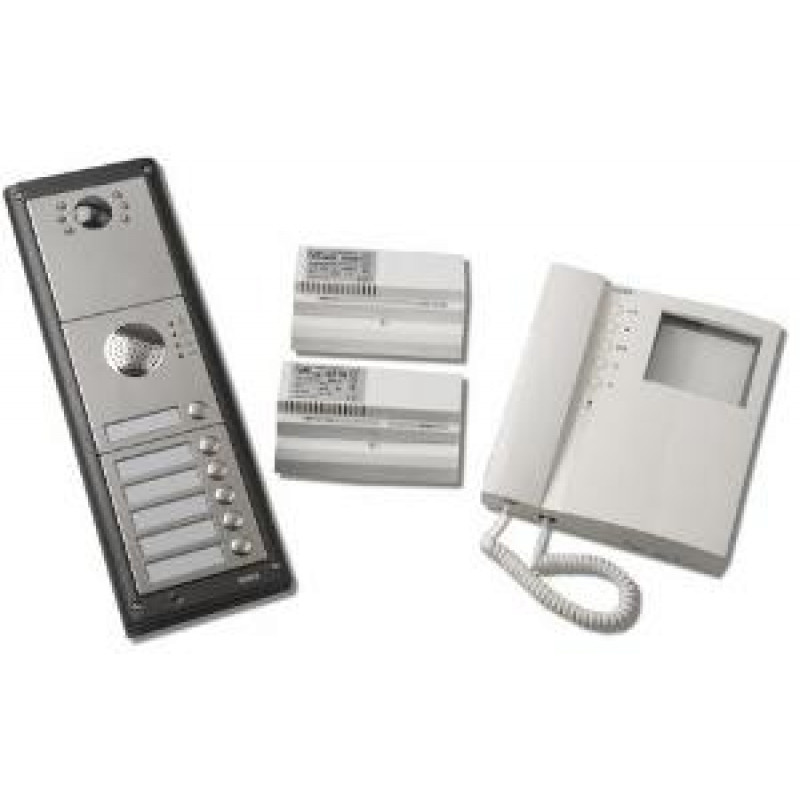

Videx, C4KVID11SNC, Eleven Button Surface Colour Multi Apartment Video Kit in 4000 Series

C4KVID11SNC, VIDEX, ELEVEN BUTTON SURFACE COLOUR MULTI APARTMENT VIDEO KIT in 4000 SERIES

11 way 4000 series colour video systems. These systems are based on the 2200 non coax 6 wire video. The door panels have "calling" "Speak" and "Door Open" Led's and bright white led lighting for camera. Speakers have adjustable speech controls. Available in surface(/S)Monitors have 3 position call volume adjustment, camera recall, contrast and brightness adjustment. a maximum of 3 monitors can used installed per call button ( or a combination of 3 monitors(3371), audio handsets (3117A) or extension sounders(512D).Requires 3980 mounting plate. Monitors are also available in silver(/CR) and carbon fibre effect (/CA)

Specifications:

• Number of entrances: 1 (Expandable to 10)
• No. Of cores to telephone: 7
• PSU: 12Vdc and 20Vdc
• Recommended cable type: CW1308
• Maximum number of call buttons: 12
• Maximum No. Of telephones per call button: 3
• Lock output: Dry contact relay (C, NO, NC)
• Videophone model: 3678
• PSU model: 521 and 893N1
• Amplifier module: 4203
• Camera module: 4830/C

For more details, please refer with our attached datasheet.
