T2 Solutions, 500-021W, Easy-Relay 24V DC Boxed (White) for Fire Systems [Back Box not included]

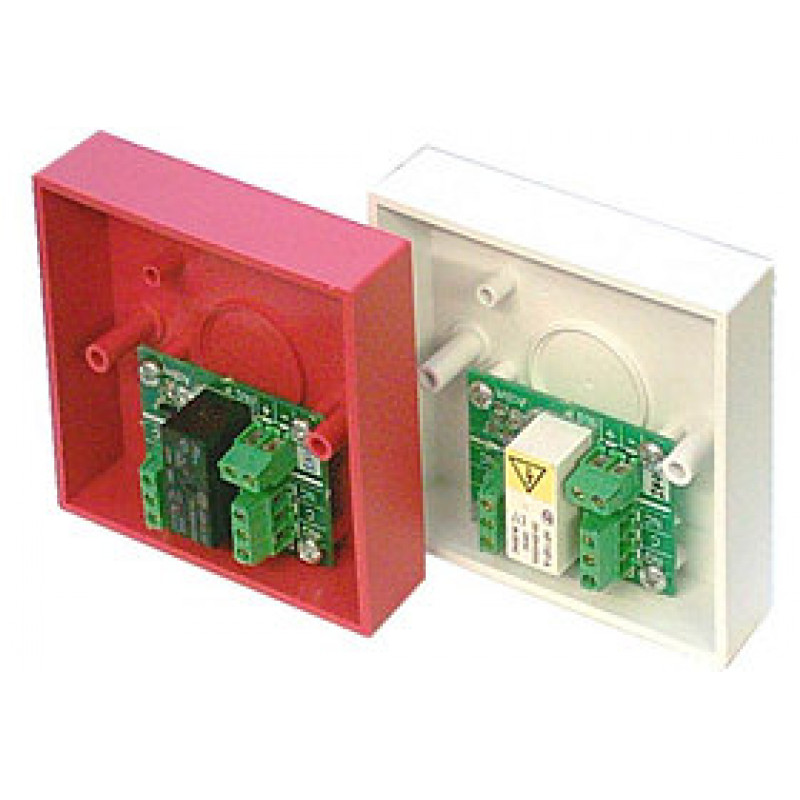

Easy-Relay 24V DC Boxed (White) for Fire Systems [500-021W]

Interfacing relay, 24V DC coil, DPCO 230V AC 8A contacts, mounted on a white single gang plate. Back box not included.

EASY RELAY makes alarm interfacing fast and efficient. Built-in series diodes for bell circuits. LED indicator for activation confirmation. No more sticky pad feet to mess about with, just a single screw fixing. The plastic bases are colour coded. Available in 12V, 24V and 240VAC trigger coils.

Overview:

• The Easy-Relay 24 is intended for use in 24VDC applications such as fire system interfacing.
• There is a built-in diode in series with the coil, which allows easy connection to bell circuits that use EOL resistors.
• The relay is of a compact power type. It has two sets of contacts, each capable of switching 8 amps.
• An LED is provided to visually indicate that the contacts are in the active position.

For more details, please refer with our attached datasheet.
