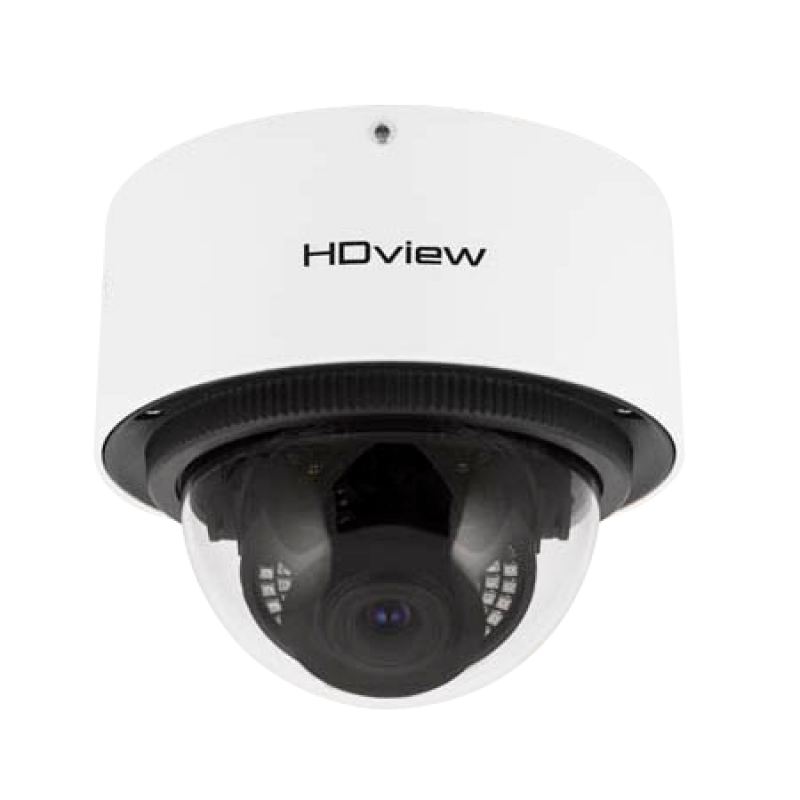

ESP (SHDVC622VFDW) 4MP SUPER HD 6-22mm DOME CAMERA WHITE
- Brand:ESP
- Product Code:SHDVC622VFDW
- Availability:Please Call or Email Us to Check Availability
ESP (SHDVC622VFDW) 4MP SUPER HD 6-22mm DOME CAMERA WHITE
- Vandal resistant
- 6 to 22mm Varifocal Lens
- High Definition 4MP AHD sensor
- 30m Infrared LED Illumination
- Viewing Angle 40~ 15°
- D-WDR incorporating ATR
- 2D and 3D Noise Reduction
- Exposure Control
- High Light Compensation
- 3-Axis Cable Management Bracket
- IP66 Weatherproof Dome Housing
Technical Specifications:
| Sensor Size | 1/3” |
| Effective Pixels | NTSC/ PAL:2560(H)x1440(V) |
| Resolution | 4 MP (2688 x 1520) |
| Minimum Illumination | 0.1 Lux |
| Scanning System | Progressive |
| Auto Electronic Shutter | NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s |
| IR Distance | 30 Meters |
| Video Output | 1Vpp, 75 ohms |
| Auto Gain Control | Auto |
| Power/Current | DC12V(+/-10%)/450mA |
| Lens | 6-22mm Manual Zoom |
| Dimension | Ø 138 x 119 (H) mm inc. Base |
| Weight | 1070g |
| Storage Temperature | -30 ~ +60ºC RH95% Max |
| Operating Temperature | -10 ~ +50ºC RH95% Max |
For more details on this product range, including part numbers, please refer to the datasheet below or contact us.
