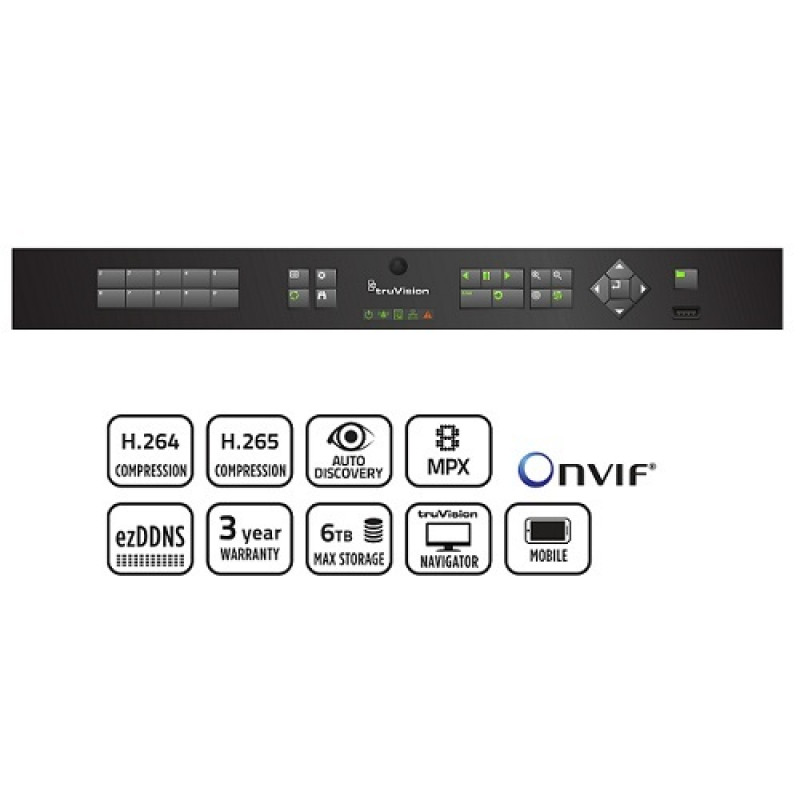

TruVision NVR 11 (TVN-1116-4T) 16 Channel, 160 Mbps - 4TB

TruVision NVR 11 (TVN-1116-4T) 16 Channel, 160 Mbps - 4TB

TruVision NVR 1116 (TVN 1116) is a cost effective network video recorder for sixteen IP video cameras. With a total of 160 Mbps of incoming bandwidth available, it can support up to sixteen cameras at Full HD resolution (1080P) in real time (25 fps).

H.265:

TVN 11 supports both H.264 and H.265 compression techniques. H.265 compression is the next evolution in video encoding. Compared to H.264, using H.265 will reduce the file size for the same video content and reduce transmission bandwidth. This means that less storage capacity is needed by H.265 than H.264 encoding for the same video duration. H.265 encoding in the TVN 11 requires that H.265 TruVision IP cameras are used.

Ease of use & flexibility:

TVN 11 is designed to be flexible – not only in its deployment and product selection, but also in its day-to-day operations.

The unit can be fully controlled locally using the front panel buttons and mouse, displaying high resolution Full HD video on its local VGA monitor or even at 4K resolution on the HDMI video output. Alternatively, TVN 11 can be operated remotely using its full featured web browser interface or using the TruVision Navigator and TVRMobile software applications.

TVN 11 is available with 2, 4 and 6 TB onboard storage. Recording options include continuous, event and alarm. The three modes can be combined to ensure that the most flexible and efficient recording method.

Basic intrusion integration:
TVN 11 can receive SIA or XSIA alarm messages from up to three Interlogix IP intrusion panels. Alarm messages, disarming and arming messages can be sent from the alarm panel to the recorder, which then can execute actions (ex. trigger alarm recording, send an email, send a PTZ to a preset, ...). Also the heartbeat message between panel and recorder is monitored. This solution offers straightforward alarm verification and is free of charge.

Key Features:

• Linux embedded Plug and Play configuration
• Supports H.264 and H.265
• Up to 160 Mbps camera recording bandwidth
• Up to sixteen IP channels
• 4 TB embedded storage
• New icon based front panel
• Real time Full HD recording
• Up to 4K resolution support
• Motion detection, VCA, privacy masking and tamper detection
• TruVision IP camera auto-detection
• Third party camera support via ONVIF Profile S or RTSP (custom protocols)
• IP camera configuration import/export
• Integration of UTC IP intrusion panels via SIA/XSIA reporting
• TVK-800 IP keypad support (no support for local display of H.265 cameras)
• USB DVD burner support
• Full browser-, OSD- and software-based access for live, recorded video & configuration
• TVRMobile app for iOS and Android
• TruVision Navigator license-free client/host or standalone application
• External integration through SDK

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
