IS (IS M12T) 12v (2Amp) Mini Transistorised Double-Pole Relay - Single Unit
- Brand:Interface Solutions
- Product Code:IS M12T
- Availability:Please Call or Email Us to Check Availability
IS (IS M12T) 12v (2Amp) Mini Transistorised Double-Pole Relay - Single Unit

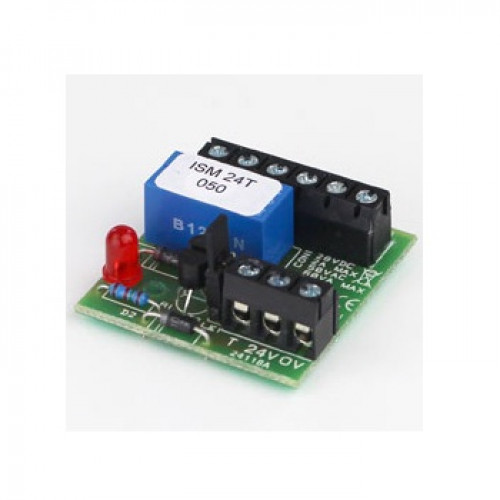

This is the transistorised miniature version of the IS 12. It is a double pole relay complete with LED indication. It has been designed to allow low current, low voltage signalling outputs from control equipment to activate the relay without overloading the signalling circuits. The trigger voltage may be negative or positive and between 5 and 15 Volts with an approximate current drain of 4 mA. The trigger polarity is selected by a plug in link.
It is supplied as an individual unit or in strips of 4 modules.
We recommend IS Sticky Feet Size A, self-adhesive mounting pillars to ensure a neat fixing.
Specifications:
- Supply Voltage: 12 Volts DC
- Trigger Voltage: 5V – 15V
- Trigger Current: 4 mAmps
- Nominal Current: 60 mA
- Coil Resistance: 285 Ohms
- Double Pole Relay Rated at: 2 Amps at 30 V DC minimum 10 mA
- Dimensions: Single: 37m (W) 37mm (L) 16mm (H)
